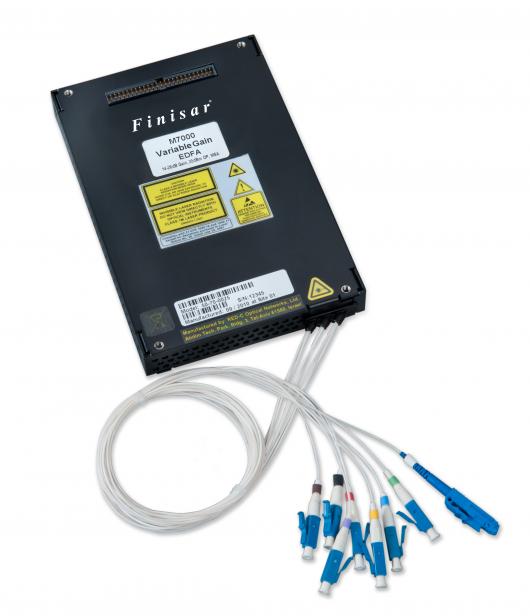

Variable Gain EDFA with control electronics

APC or AGC control modes

Flat spectrum over gain range of 17-32 dB

Output power up to 20.5 dBm

Low noise figure

Mid-stage access 4-9dB

100x150x18 package (without heat sink)

Standard command protocol according to
IEC 61291-6-1

Low power dissipation

RoHS compliant and lead free

Class 1M* laser safety classification

Name	FOA-M7100DA-EVG2C-AA013
Description	Variable Gain 25-37dB, 4-9dB Mid-stage, 1529.5-1564nm, 20.5dBm Output Power, 5V PS, LVTTL Communication, LC/UPC connectors, 0/70°C case, Class 1M, Class 1M
Wavelength Range	1529.5nm to 1564nm
Band	C band
Size	100x150x18mm
Noise Figure	7.2dB at G≥25dB
Gain Flatness	0.7dB to 1.2dB
Gain range	25dB to 37dB, 4dB to 9dB Mid-stage
Output Power Range	-2dBm to 20.5dBm
Input power range	-37.0dBm to -3.5dBm w/fast transient suppression
Saturated Output Power	20.5dBm
Power Consumption	17W
Power Supply	4.75V to 5.25V
I/O	RS232
Series	CW-DWDM-VarGain-DualStage
Transient Overshoot/Undershoot	±1.5dB
Connector Type	LC/UPC
Gain (Max)	37dB, 9dB Mid-stage
PDL	0.3dB
