Features
- High output voltage 12.5 Vpp
- High gain 29dB
- Flat gain up to 20GHz
- Single voltage power supply
Applications
- 22 Gbps DPSK
- 2×20 Gbps (D)QPSK
- Spectrum broadening
Options
- 13.5 Vpp output voltage
- Heat-sink
- Analog version

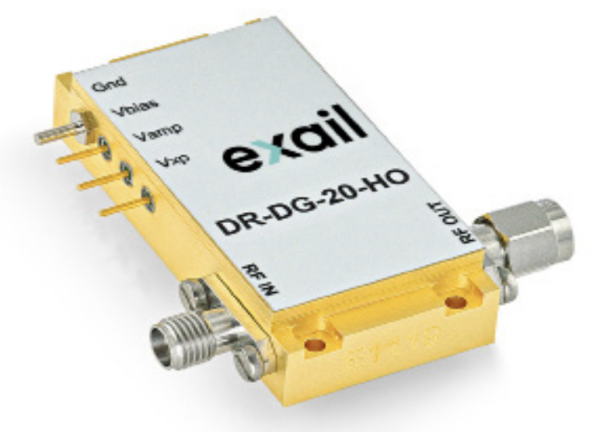

DR-DG-20-HO
Quick Overview
The DR-DG-20-HO (High Output) is a driver module optimized for digital applications requiring an upper operation voltage. It exhibits 12.5 Vpp output volatge and 29 dB gain up to 23 GHz.
| Name | DR-DG-20-HO |
|---|---|
| Description | 23GHz High Output Voltage Driver Module |
| Frequency | 80 kHz – 25 GHz |
| Saturated Power | 26dBm |
| Added Jitter | 1.05ps |
| Gain | 29dB (typ) |
| Output Voltage | 12.5-13.5 Vpp |
| Rise/Fall Time | 12/16ps |
