- 3000ps Optical Delay Range
- Enables to set the delay of the interferometer to the desired value
- Ideal for D(Q)PSK demodulation
- Widely tunable – FSR from 0.33GHz to infinite
- Motorized tuning
- Low voltage

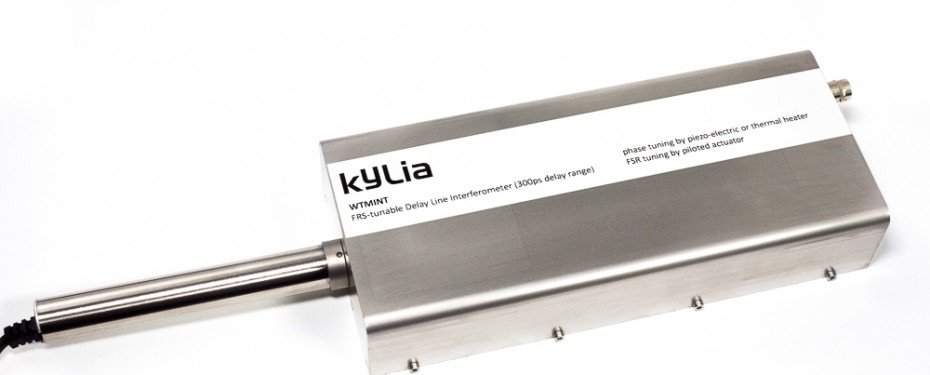

WT-MINT-3000-P-L
Quick Overview
Widely Tunable Micro Interferometer, 3000ps, motorized (piloted) tuning, low voltage
| Name | WT-MINT-3000-P-L |
|---|---|
| Description | Widely Tunable Micro Interferometer, 3000ps, motorized (piloted) tuning, low voltage |
| Size | 750 x 400 x 129 mm |
| Tuning time constant | 1.0 s |
| Tuning Voltage | Low Voltage – 3V to reach tuning range |
| Operating wavelength | 1520 – 1570 nm |
| phase tuning connector | BNC |
| FSR tuning range | 0.33GHz to infinite |
| Optical delay range | 3000 ps |
| Optical return loss | 35 dB |
| Power Consumption | 0.5 W |
| PMD | 0.1 ps |
| Skew | Typ. 0.5 ps, Max 1.0 ps |
| Insertion Loss | 4.0 dB |
| I/O | USB |
| Tuning Range | 1.5 FSR |
