- 20 channels
- C+L Band
- complete grid modularity
- ultra wide frequency range
- spacing tunability and frequency tunability
- spacing tunable from 12.5GHz to 100GHz (4 ranges available)
- motorized tuning
- PM option available
- 2U rack packaging
TMICS-P
Quick Overview

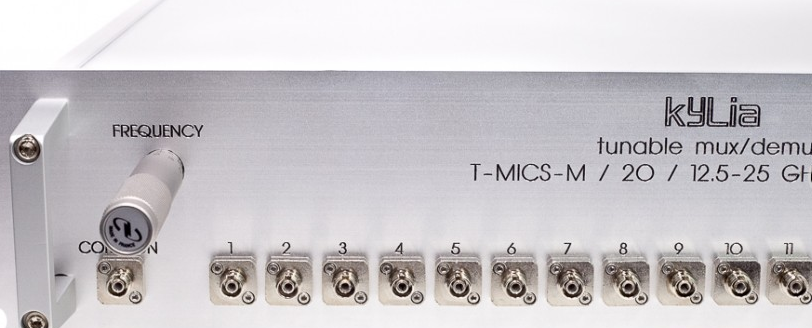

20 Channel Tunable Mux/Demux, Gaussian shaped, Motorized Tuning, 2U Rackmount
| Name | TMICS-P |
|---|---|
| Description | 20 Channel Tunable Mux/Demux, Gaussian shaped, Motorized Tuning, 2U Rackmount |
| Channels | 20 |
| Size | 2U rackmount |
| non-adjacent crosstalk | 40 dB |
| Chromatic Dispersion | +/- 10ps/nm |
| Directivity | 50 dB |
| IL uniformity | <1.5 dB |
| PMD | < 0.2 ps |
| Channel Spacing | 4 ranges are available (see options) |
| Fiber Type | SMF28 or PM (optional) |
| Filter Shape | Gaussian |
| Wavelength Band | 23 |
