Features
- Low insertion loss
- Compact low profile package
- Rugged hermetic design
- Stable performance
- Custom configurations available
Applications
- Fiber laser
- Pulse picker
- Optical sensing

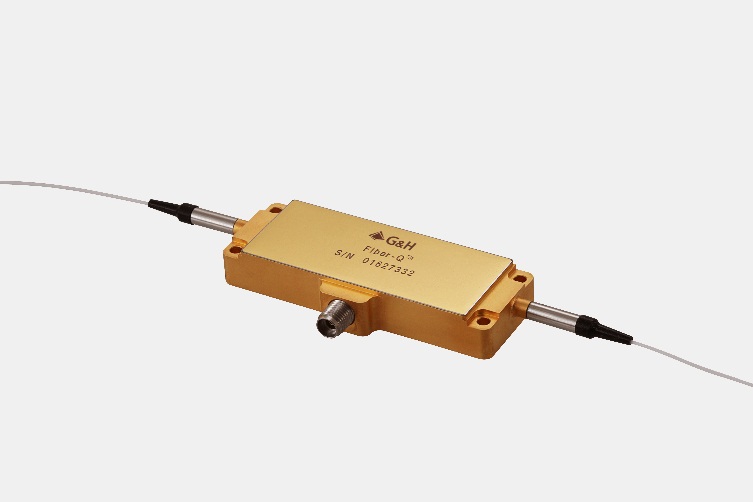

T-M250-0.3C16Z-3-F2P
Quick Overview
Fiber-Q 2000 nm (2µm) 250 MHz Fiber Coupled AOM – For use at the wavelength of 2000 nm, with a rise/fall time of 20 ns and an operating frequency of 250 MHz, with PM pigtails.
| Name | T-M250-0.3C16Z-3-F2P |
|---|---|
| Description | Fiber-Q 2000 nm (2µm) 250 MHz Fiber Coupled AOM |
| Frequency | 250MHz |
| Wavelength(nm) | 2000nm |
| Peak Optical Power Handling | Max: 1 kW |
| Average Optical Power Handling | Max: 1 W |
| Return Loss | 40 dB |
| Input Impedance | Typ. 50 ohm |
| Max RF Power | 6 W |
| Extinction Ratio | 50 dB |
| Insertion Loss | 4 dB |
| Rise/Fall Time | 20ns |
| Fiber Type | PM |
