Features
- Low insertion loss
- Compact low profile package
- Rugged hermetic design
- Stable performance
- Custom configurations available
Applications
- Biomedical
- Optical sensing
- Pulse picker
T-M200-0.5C2W-3-F2x
Quick Overview

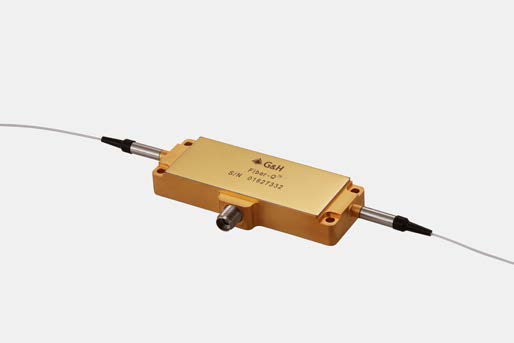

Fiber-Q, 780 nm, 200 MHz Fiber Coupled AOM – For use at the wavelength of 780 nm, with a rise/fall time of 50 ns and an operating frequency of 200 MHz, with SM or PM pigtails.
| Name | T-M200-0.5C2W-3-F2x |
|---|---|
| Description | Fiber-Q, 780 nm, 200 MHz Fiber Coupled AOM |
| Frequency | 200MHz |
| Wavelength(nm) | 780nm |
| Peak Optical Power Handling | Max: 1 kW |
| Average Optical Power Handling | Max: 1 W |
| Return Loss | 40 dB |
| Input Impedance | Typ. 50 ohm |
| Max RF Power | 2 W |
| Extinction Ratio | 50 dB |
| Insertion Loss | 3 dB |
| PDL | 0.5 dB |
| Rise/Fall Time | 50ns |
| Fiber Type | PM, SM |
