Features
- Low insertion loss
- Compact low profile package
- Rugged hermetic design
- Stable performance
- Low power consumption
- Custom configurations available
Applications
- Sensing (heterodyne interferometry)
- Intensity modulation
T-M080-0.5C8J-3-F2P
Quick Overview

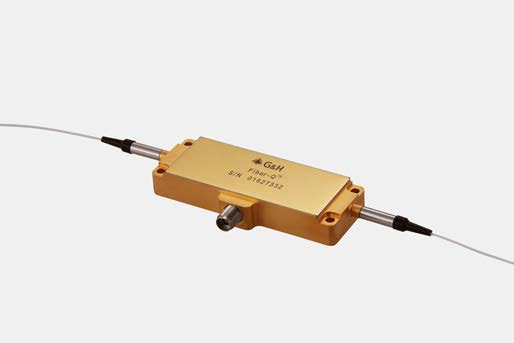

Fiber-Q Polarization Maintaining 1550 nm Hermetic Fiber Coupled Acousto-Optic Modulator, 80 MHz (Low Power Consumption) – For use at the wavelength of 1550 nm, with a rise/fall time of 70 ns and an operating frequency of 80 MHz, with PM pigtails.
| Name | T-M080-0.5C8J-3-F2P |
|---|---|
| Description | Fiber-Q Polarization Maintaining 1550 nm Hermetic Fiber Coupled Acousto-Optic Modulator, 80 MHz (Low Power Consumption) |
| Frequency | 80MHz |
| Wavelength(nm) | 1550nm |
| Peak Optical Power Handling | Max: 1 kW |
| Average Optical Power Handling | Max: 1 W |
| Return Loss | 40 dB |
| Max RF Power | 0.4 W |
| Extinction Ratio | 50 dB |
| Insertion Loss | 2.5 dB |
| Rise/Fall Time | 100ns |
| Fiber Type | PM |
