Features
- Low insertion loss
- Compact, low profile package
- Sealed to IP54 (dust/splash proof, non-hermetic)
- Stable performance
- Custom configurations available
Applications
- Biomedical
- Optical sensing
- Pulse picker
S-M200-0.4C2E-3-F2x
Quick Overview

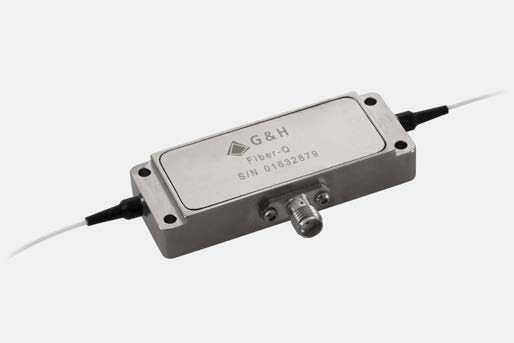

Fiber-Q, 633 nm 200 MHz Fiber Coupled AOM – For use at the wavelength of 633 nm, with a rise/fall time of 25 ns and an operating frequency of 200 MHz, with SM or PM pigtails.
| Name | S-M200-0.4C2E-3-F2x |
|---|---|
| Description | Fiber-Q, 633 nm 200 MHz (PM or SM available) |
| Frequency | 200MHz |
| Wavelength(nm) | 633nm |
| Average Optical Power Handling | Max: 0.1 W |
| Return Loss | 40 dB |
| Max RF Power | 1 W |
| Extinction Ratio | 50 dB |
| Insertion Loss | 2.5 dB |
| PDL | 0.2 dB |
| Rise/Fall Time | 25ns |
| Fiber Type | PM,SM |
