Features
- Low insertion loss
- Compact low profile package
- Sealed to IP54 (dust/splash proof)
- Stable performance
- Custom configuration available
Applicable
- Fiber laser
- Fiber amplifier
- Pulse Picker
S-M150-0.4C2G-3-F2S
Quick Overview

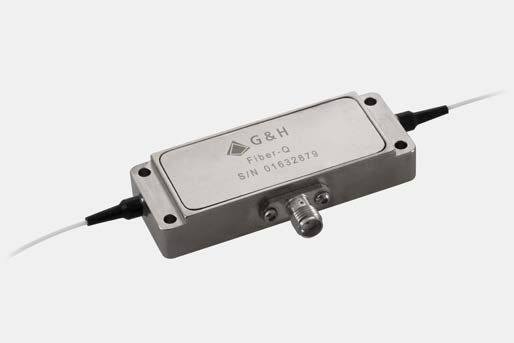

Fiber-Q 1060 nm – 150 MHz Non-Hermetic Fiber-Coupled AOM – For use at the wavelength of 1060 nm, with a rise/fall time of 30 ns and an operating frequency of 150 MHz, with SM pigtails.
| Name | S-M150-0.4C2G-3-F2S |
|---|---|
| Description | Fiber-Q 1060 nm – 150 MHz Non-Hermetic Fiber-Coupled AOM |
| Frequency | 150MHz |
| Wavelength(nm) | 1060nm |
| Peak Optical Power Handling | Max: 30 kW |
| Average Optical Power Handling | Max: 5 W |
| Return Loss | 40 dB |
| Input Impedance | Typ. 50 ohm |
| Max RF Power | 2 W |
| Insertion Loss | 1.7 dB |
| PDL | 0.2 dB |
| Rise/Fall Time | 30ns |
| Fiber Type | SM |
