Features

6, 10 or 15 mode multiplexer

Operation over C-band (1550 nm)

Low insertion loss and high mode selectivity

Ultra compact design

Optimized for commercially available few-mode fibers

Applications

Custom spatial mode multiplexer tailored to meet all requirements for SDM, OAM and FSO applications

Possible use :
• Mode-multiplexing for SDM transmission over FMF
• Pump & signal multiplexing for few-mode EDFA
• Free-space output with custom beam shape, size and focal point

On-demand spatial mode shapes

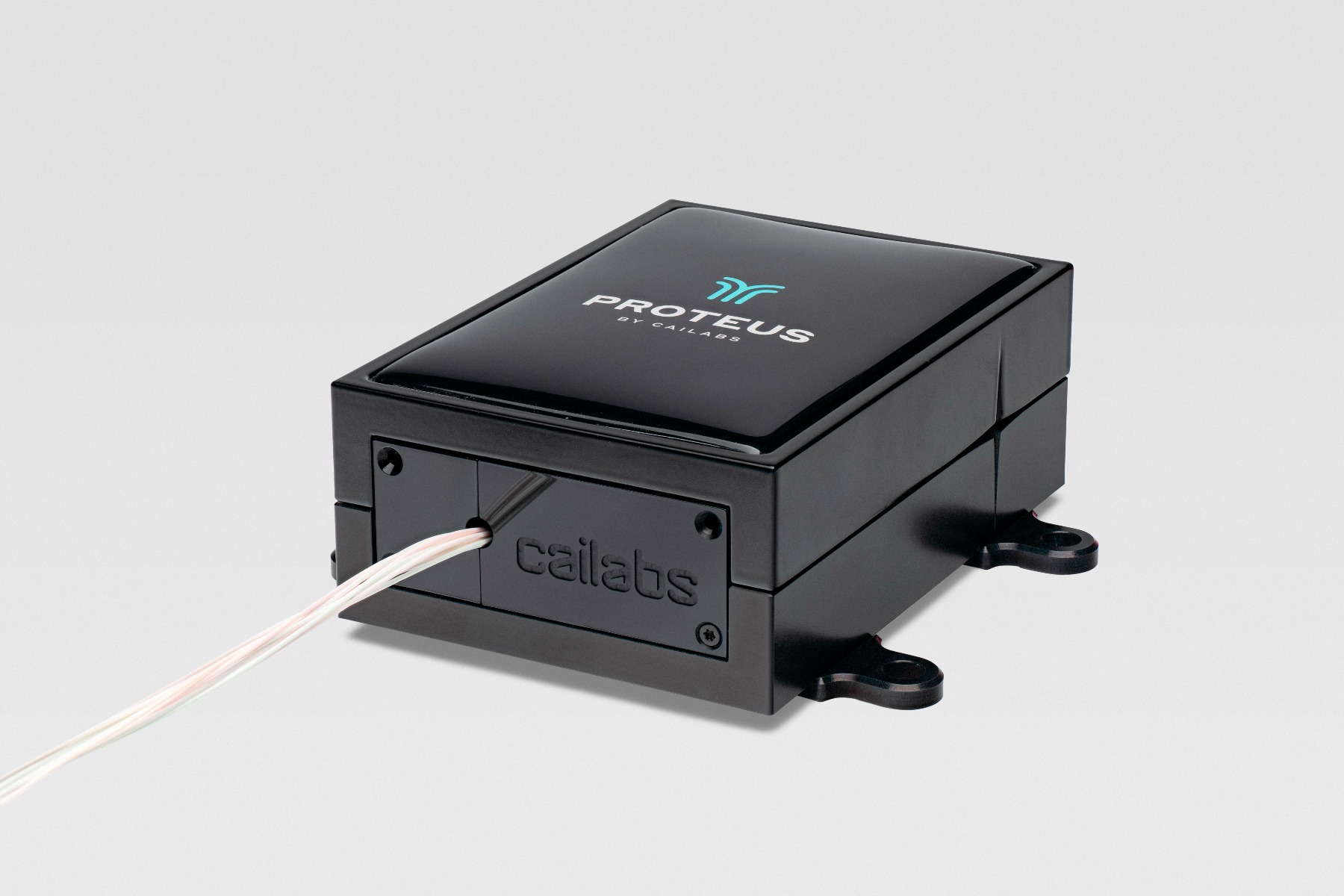

Name	Proteus-S-6
Description	Standard mode-selective spatial multiplexer
Signal Output	4 LP mode step-index fiber by Prysmian or graded-index by OFS, or 50/125 µm multimode fiber
Package size	130 x 94 x 35 mm
Modes	6
Operating wavelength	C-band (optimized for 1550 nm)
Crosstalk	-20 dB
Insertion Loss	< 6 dB
Fiber Type	SMF-28e+ array with LC/PC connectors

Proteus-S-6

Proteus-S-6
