Features
Applications
• Mode-multiplexing for SDM transmission over FMF
• Pump & signal multiplexing for few-mode EDFA
• Free-space output with custom beam shape, size and focal point

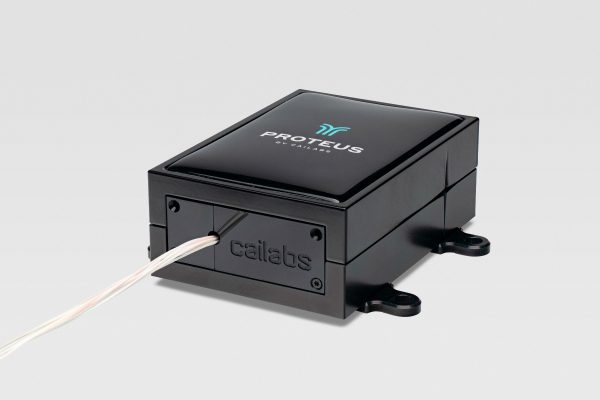

Proteus-C
Quick Overview
Custom mode-selective spatial multiplexer
• Mode-multiplexing for SDM transmission over FMF
• Pump & signal multiplexing for few-mode EDFA
• Free-space output with custom beam shape, size and focal point
| Name | Proteus-C |
|---|---|
| Description | Custom mode-selective spatial multiplexer |
| Signal Output | Standard or custom FMF, MMF or free space |
| Package size | 140x125x55 mm (Fiber output) or 153x125x55 mm (Free Space output) |
| Modes | Up to 45 modes |
| Operating wavelength | C-band, L-band or O-band (others available) |
| Crosstalk | Between < -12 dB and < -20dB |
| Insertion Loss | Between < 5 dB and < 14 dB |
| Fiber Type | SMF-28e+ array or FMF or MMF |
