OPM
Quick Overview

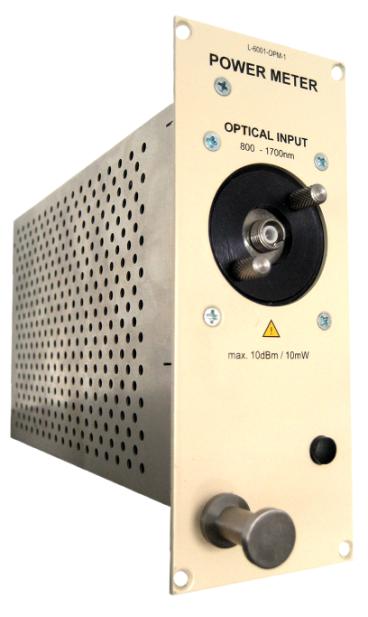

Optical Power Meter 800-1700 nm, -70 to +10 dBm, universal connectors
| Name | OPM |
|---|---|
| Description | Optical Power Meter 800-1700 nm, -70 to +10 dBm, universal connectors |
| Wavelength(nm) | 800 – 1700 nm |
| Resolution | .01 dBm |
| Available Optical Connector Receptacles | LC, SC, Angled SC, NTT-FC/PC, FC/APC, AT&T-ST, MU, Universal for 2,5mm diameter ferrules |
| Accuracy | -5 – +5% |
| Operation Temperature | 0 – 50°C |
| Linearity | -0.3 – +0.3 B |
| Measurement units | dBm, Watts, relative (P/Pref) |
| Measurement Range | -75 – +10 dBm |
