Features
- 2 actuation axes
- ±4° (up to 5°)
- Linear control
Applications
- 2D Static and dynamic Optical Beam Steering
- 2D Optical Scanner Device
MM2536-2
Quick Overview

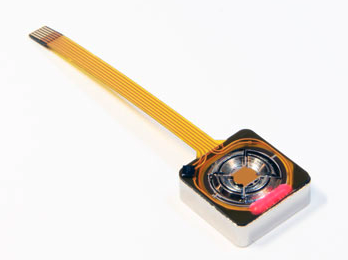

Dual Axes Magnetic Mirror – The sercalo magnetic deflection units are used for optical beam steering and scanning. The 2-D mirror has a reflective surface of 2.5 x 3.6 mm.
| Name | MM2536-2 |
|---|---|
| Description | Dual Axes Magnetic Mirror |
| Tilt_Angle_DC | ± 4° |
| Angle_of_Incidence | 45° |
| Reflectivity | (800-2000 nm) 95 % |
| Mirror Flatness | 10 m |
| Max Actuation Current | 200 mA |
| Max Actuation Power | 1 W |
| Operating Temperature | -5 to 85 ℃ |
| Storage Temp | -40 to 85 ℃ |
| Resonance Frequency | X: 350 – 390 Hz / Y: 200 – 240 Hz |
| Surface Finish | Gold or Aluminium |
| Mirror Size | (A X B) 2.5 X 3.6 mm^2 |
