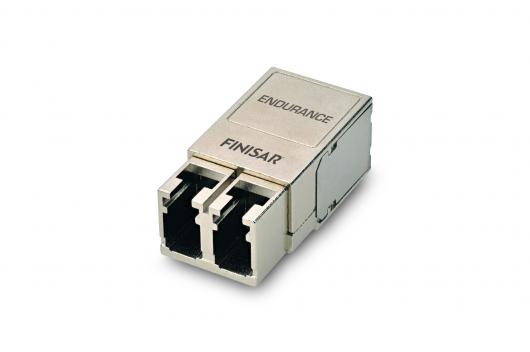

Full-duplex transceivers for optical data links over two glass optical fibers

Short-Reach 850nm VCSEL Multimode

Multi-rate and Rate Select versions available

Compact form-factor: Half the size of SFF transceivers

Board-mounted

Built-in digital diagnostic functions

Duplex LC optical connection

Single 3.3V power supply

Interoperable with standard SFP and SFP+ optical transceivers

Extended operating temperature range of -40°C to 85°C

Extreme storage temperature range from -57°C to 100°C

Option for conformal coating for high reliability in corrosive environments

Qualified to applicable tests in MIL-STD-810G, MIL-STD-883 and GR-486-CORE

Meets applicable requirements for Gigabit Ethernet, 10 Gigabit Ethernet, and Fibre Channel

Applications

Fast Ethernet

10 Gigabit Ethernet

1 Gigabit Ethernet

8G Fibre Channel

4G Fibre Channel

2G Fibre Channel

Proprietary high-speed data links

Name	FTE8510K1LTN
Description	Endurance, Short-Reach, 10 GbE/1 GbE Rate-select, -40°C to 85°C, Conformal Coating THESE PRODUCTS HAVE A MOQ OF 100 PIECES
Wavelength(nm)	850nm Band
Reach	Short-Reach
Voltage Supply	3.3
Receiver	PIN
Transmitter	VCSEL
Diagnostics	Digital
High End Case Temperature	85°C
Low End Case Temperature	-40°C
Distance	26 to 300 meters* (10 Gb/s), 70 to 150 meters* (4 Gb/s), 300 to 550 meters* (1 Gb/s)
Protocols Supported	Optical Fast Ethernet Compatible Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant 2x Fibre Channel Compliant 4x Fibre Channel Compliant 8x Fibre Channel Compliant 10 Gigabit Ethernet Compliant
Data-rate	(max): 10 Gb/s
Connector	LC
