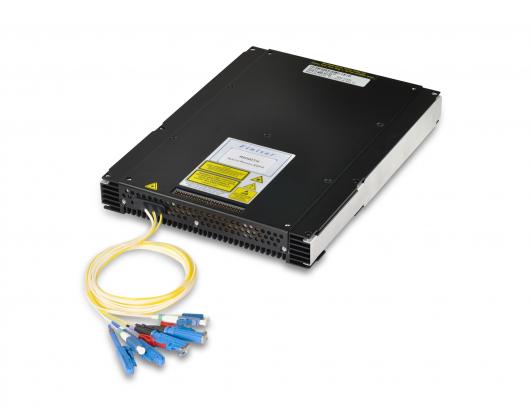

FOA-R9300TH-HBR3C-AA001
Quick Overview
Dual Raman Pump, Variable Gain 19-37dB, 1529-1567nm, 20.5dBm Output Power, 5V PS, LVTTL Communication, LC/UPC and E2000 connectors, 0/70°C case, Class 1M
unified gain control
one 980 nm EDFA pump
all gain values
independent on fiber losses.
mechanisms
| Name | FOA-R9300TH-HBR3C-AA001 |
|---|---|
| Description | Dual Raman Pump, Variable Gain 19-37dB, 1529-1567nm, 20.5dBm Output Power, 5V PS, LVTTL Communication, LC/UPC and E2000 connectors, 0/70°C case, Class 1M |
| Wavelength Range | 1528nm to 1567.2nm |
| Band | C band |
| Size | 220x160x26mm |
| Number of Pump Lasers | 3 (2X for Raman, 1X for EDFA) |
| Gain (Max) | 37dB |
| Noise Figure | -0.1dB at G=37dB |
| PDG + PDL | 0.5dB |
| Gain Flatness | 1.3dB at G=27-40 dB |
| Gain range | 19dB to 37dB |
| Input power range | -40dBm to 1.5 dBm (Raman off) |
| Saturated Output Power | 20.5dBm |
| Connector Type | LC/UPC and E2000 connectors |
| Power Consumption | 42W |
| Power Supply | 4.75V to 5.25V |
| Series | Hybrid Raman EDFA |
