– AGC, max power modes
FOA-R9100PR-RBW2C-AA003
Quick Overview

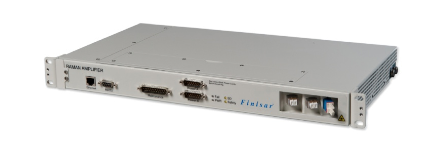

UltraSpan Raman, Counter-propagating, 1RU Network Interfaced, 450mW pump, 1529 -1564nm, 10dB Typical gain, OSC 100-155Mb/s (pass), 48V Supply, NEBS, Class 1M
– AGC, max power modes
| Name | FOA-R9100PR-RBW2C-AA003 |
|---|---|
| Description | UltraSpan Raman, Counter-propagating, 1RU Network Interfaced, 450mW pump, 1529 -1564nm, 10dB Typical gain, OSC 100-155Mb/s (pass), 48V Supply, NEBS, Class 1M |
| Wavelength Range | 1528nm to 1567nm ; 1500nm to 1520nm (OSC) |
| Size | 1RU |
| Number of channels | 1 to 88 |
| Gain (Max) | 15dB True Wave |
| Noise Figure | -1dB |
| PDG + PDL | 0.6dB ; 0.15dB |
| OSC insertion loss | 2.5dB |
| Composite pump power | 450mW to 490mW |
| Gain Flatness | 1dB |
| Gain range | 10dB SMF, 13dB Leaf, 14dB TerraLight, 15dB True Wave ; >5dB OSC |
| Input power range | -45dBm to -10dBm Pump Off (composite) |
| Connector Type | MU/LC and E2000/LC |
| Power Consumption | 55W |
| Power Supply | -76V to -36V |
| I/O | SNMP, RJ45 |
| Series | UltraSpan Raman |
