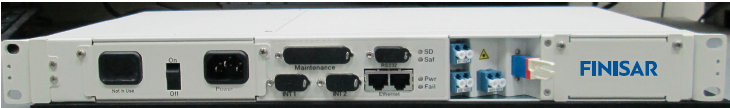

Benchtop or rack-mountable C-Band EDFA in 1RU enclosure

High Power EDFA up to 25.5dBm Output Power

Flat gain spectrum at 17dB gain

Remote software management and upgrade

Web based GUI with Management Application Suite

LabView and .NET Drivers based DLL for integrating EDFA control into users System

APC or AGC control modes

High-speed, high-performance transient suppression

Class 1M* laser safety classification

Name	FOA-R7100TM-EVG2C-AA063
Description	UltraSpan M2100TM 23dBm Output Power, 18-28dB Gain C-Band EDFA for T&M
Wavelength Range	1527.99nm to 1567.13nm
Band	C band
Size	1RU
PDG + PDL	0.3dB
Gain Flatness	1.0dB (@ OFG)
Gain range	18dB to 28dB
Output Power Range	0dBm to +23dBm
Input power range	-24.3dBm to +5.5dBm
Saturated Output Power	23dBm
Series	CW-Single Channel
Power Consumption	40W
Power Supply	120V AC
GFF	no
I/O	Ethernet and RS232
Noise Figure	5.5B (@ 28dB Gain)
Gain (Max)	28dB
Connector Type	LC/UPC
