to 25.5 dBm output power
channel (OSC), at 1510 nm
FOA-R2100PB-EPB2C-AA010
Quick Overview

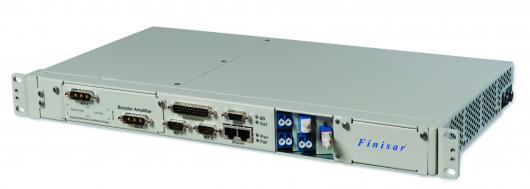

UltraSpan Power Booster EDFA, 1RU Network Interfaced, 1529 – 1564nm, 25.5dBm, 6dB gain, with 1510nm OSC Booster 11dBm Output Power, 48V Supply, NEBS, Class 1M
to 25.5 dBm output power
channel (OSC), at 1510 nm
| Name | FOA-R2100PB-EPB2C-AA010 |
|---|---|
| Description | UltraSpan Power Booster EDFA, 1RU Network Interfaced, 1529 – 1564nm, 25.5dBm, 6dB gain, with 1510nm OSC Booster 11dBm Output Power, 48V Supply, NEBS, Class 1M |
| Wavelength Range | 1529nm to 1564nm |
| Band | C band |
| Size | 1RU |
| PDG + PDL | <0.4dB |
| Gain Flatness | ±0.5dB |
| Gain range | 5.5dB to 6.5dB |
| Output Power Range | 5dB to 26dB |
| Input power range | -5dBm to 21dBm |
| Saturated Output Power | 25.5dB |
| Series | CW-Single Channel + OSC |
| Power Consumption | 55W |
| Power Supply | -76V to -36V |
| GFF | no |
| I/O | SNMP, RJ45 |
| Noise Figure | 8dB |
| Gain (Max) | 6.5dB |
| Connector Type | LC/UPC and E2000 |
