electronics and VOA on the output
IEC 61291-6-1

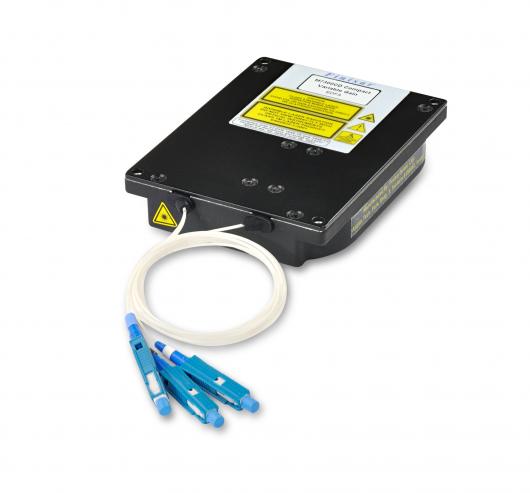

FOA-M2300CD-EFV1C-AA009
Quick Overview
Fixed Gain 22dB w/VOA on Output, 1529.5-1564nm, 19dBm Output Power, 5V PS, LVTTL Communication, LC/UPC connectors with output 1% monitor, 0/70°C case, Class 1M
electronics and VOA on the output
IEC 61291-6-1
| Name | FOA-M2300CD-EFV1C-AA009 |
|---|---|
| Description | Fixed Gain 22dB w/VOA on Output, 1529.5-1564nm, 19dBm Output Power, 5V PS, LVTTL Communication, LC/UPC connectors with output 1% monitor, 0/70°C case, Class 1M |
| Wavelength Range | 1529.5nm to 1564nm |
| Band | C band |
| Size | 70x90x16.5mm |
| Gain (Max) | 22dB |
| Transient Overshoot/Undershoot | ±1.5dB |
| Attenuation range | 1dB to 20dB |
| Noise Figure | 5.5dB |
| PDG + PDL | 0.3dB |
| Gain Flatness | ± 0.5dB |
| Input power range | -18dBm to +2dBm |
| Saturated Output Power | 19dBm |
| Connector Type | LC/UPC |
| Power Consumption | 11W |
| Power Supply | 4.75V to 5.25V |
| I/O | RS232 |
| Series | CW-DWDM w/VOA |
