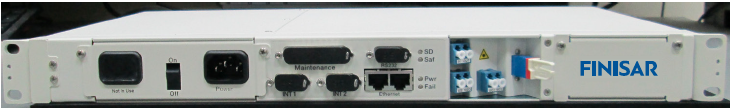

Benchtop or rack-mountable C-Band EDFA in 1RU enclosure

Dual EDFA in a single 1RU package

Up to 20dBm output power

Flat gain spectrum at 23dB gain

Remote software management and upgrade

Web based GUI with Management Application Suite

LabView and .NET Drivers based DLL for integrating EDFA control into users System

APC or AGC control modes

High-speed, high-performance transient suppression

Class 1M* laser safety classification

Name	FOA-M2200TM-EFG2C-AA061
Description	UltraSpan M2200TM 20dBm Output Power, 23dB Gain Dual C-Band EDFA for T&M
Wavelength Range	1529nm to 1564nm
Band	C band
Size	1RU
Gain (Max)	23dB (OFG)
Noise Figure	6.5dB (@ OFG)
PDG + PDL	0.3dB
Gain Flatness	+/-0.5dB (@ 23dB Gain)
Output Power Range	-8dBm to +20dBm
Input power range	-35dBm to -3dBm
Saturated Output Power	20dBm
Connector Type	LC/UPC
Power Consumption	40W
Power Supply	120V AC
GFF	no
I/O	Ethernet and RS232
Series	CW-Single Channel-Dual EDFA
