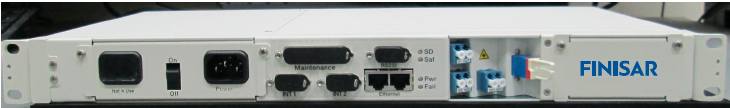

Benchtop or rack-mountable C-Band EDFA in 1RU enclosure

Up to 17dBm output power

Flat gain spectrum at 17dB gain

Remote software management and upgrade

Web based GUI with Management Application Suite

LabView and .NET Drivers based DLL for integrating EDFA control into users System

APC or AGC control modes

High-speed, high-performance transient suppression

Class 1M* laser safety classification

Name	FOA-M2200TM-EFG1C-AA060
Description	UltraSpan M2200TM 17dBm Output Power, 17dB Gain C-Band EDFA for T&M
Wavelength Range	1529.1nm to 1564.2nm
Band	C band
Size	1RU
PDG + PDL	0.3dB
Gain Flatness	1.2dB (@ 17dB Gain)
Gain range	5dB to 18dB (17dB is Optimal Gain for Flatness)
Output Power Range	-2dBm to +18dBm (Monitor Range)
Input power range	-10dBm to +12dBm
Saturated Output Power	17dBm
Series	CW-Single Channel
Power Consumption	40W
Power Supply	120V AC
GFF	no
I/O	Ethernet and RS232
Noise Figure	6.5dB (@ OFG)
Gain (Max)	18dB
Connector Type	LC/UPC
