booster operation modes for wider range of
applications
IEC 61291-6-1

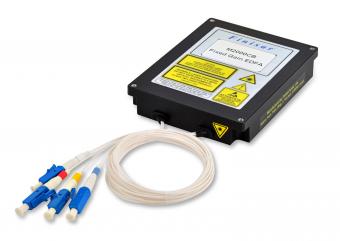

FOA-M2200CB-EFG1C-AA006
Quick Overview
Fixed Gain 20dB, Dual Mode, 1529.5-1564nm, 20dBm Output Power, 5V PS, LVTTL Communication, LC/UPC connectors with 1% output monitor, 0/70°C case, Class 1M
booster operation modes for wider range of
applications
IEC 61291-6-1
| Name | FOA-M2200CB-EFG1C-AA006 |
|---|---|
| Description | Fixed Gain 20dB, Dual Mode, 1529.5-1564nm, 20dBm Output Power, 5V PS, LVTTL Communication, LC/UPC connectors with 1% output monitor, 0/70°C case, Class 1M |
| Wavelength Range | 1529.5nm to 1564nm |
| Band | C band |
| Size | 70x90x15 mm |
| Gain (Max) | 20dB |
| Noise Figure | 5.5dB |
| Gain Flatness | ± 0.5dB |
| Input power range | -32dBm to 0dBm |
| Saturated Output Power | 20dBm |
| Connector Type | LC/UPC |
| Power Consumption | 11W |
| Power Supply | 4.75V to 5.25V |
| I/O | RS232 |
| Series | CW-DWDM |
