Integrated touchscreen

Live fiber viewing

Auto-center

Auto-focus

Auto-pan/scroll

Built-in fiber end-face analysis

Also tests simplex fibers (compatible with FBPT series inspection tips)

Audible sounds for Pass/Fail results

User-selectable acceptance profiles

Stores results on device or export

WiFi and USB connection to a PC or mobile devices

All-day battery life

Built in acceptance criteria to industry standards (IEC-61300-3-35)

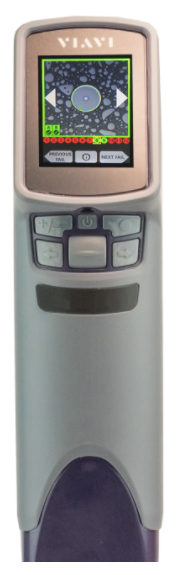

Name	FIT-FCSW-KIT2
Description	Kit: FiberChek Sidewinder probe – WiFi Case, FCPP-OLA-1, FCPT-MTP, FCPT-MTPA, FCPT-UFBPT, FBPP-BAP1, tip case
Size	335 mm x 60 mm x 48 mm (13.2 in x 2.4 in x 1.9 in)
lighting_technique	Coaxial
light_source	Blue LED, 100,000+ hr life
auto_index	Pan/Scroll up to 32 fibers (2 x 16)
Charge_time	2 hr (2 A max power source) 8 hr (500 mA max power source)
Live Image	640 x 480, 10 fps
Certification	CE, EN/IEC 61326
Field of View / Low Magnification	Horizontal: 713 μm, Vertical: 950 μm
Field of View / High Magnification	Horizontal: 356 μm, Vertical: 475 μm
Run Time	5 hr
Power Source	Internal Li-ion battery, USB power
Sensors	2560 x 1920, 1/2.5 in CMOS, 5 megapixel
Power Supply	5V wall adapter with interchangeable plug for US, EU, UK, AU
Display	240 x 320 2.5” LCD touchscreen
Output	USB, WiFi

FIT-FCSW-KIT2
