Features
- Micro Processor Controlled
- Nanosecond Fiber Laser Module
- 1.5 ns pulsed laser
- 375 mW Output Power
- RS-232
- +5 VDC +/- 5%
EDFL-Nano-1550-1.5-3-375mW-FCA
Quick Overview

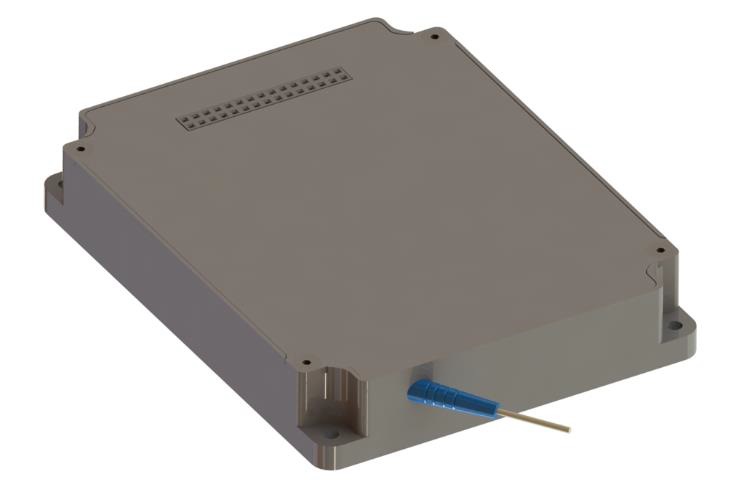

Micro Processor Controlled Nanosecond Fiber Laser Module
| Name | EDFL-Nano-1550-1.5-3-375mW-FCA |
|---|---|
| Description | Micro Processor Controlled Nanosecond Fiber Laser Module |
| Center Wavelength(nm) | 1550 nm typical |
| Control and Communication Interface | RS-232, TTL voltage level |
| Output fiber type | 900um loose tube, FC/APC, 0.5 meter, SMF-28 |
| Dimensions | 90 x 70 x 15 mm |
| Repetition Rate | 125 kHz, up to 1 MHz |
| Pulse Energy | 3 μ J |
| Pulse Width | 1.5 ns |
| Input Power | +5 VDC +/- 5% |
| Output Power | 375 mW |
