Features
- Output voltage up to 9 Vpp
- Low Rise / Fall time
- Flat gain up to 15 GHz
- Single voltage power supply
- Low group delay variations
Applications
- LiNbO3 modulators
- OC-192 SONET / SDH • 12.5 Gbps NRZ and RZ
- Research & Development

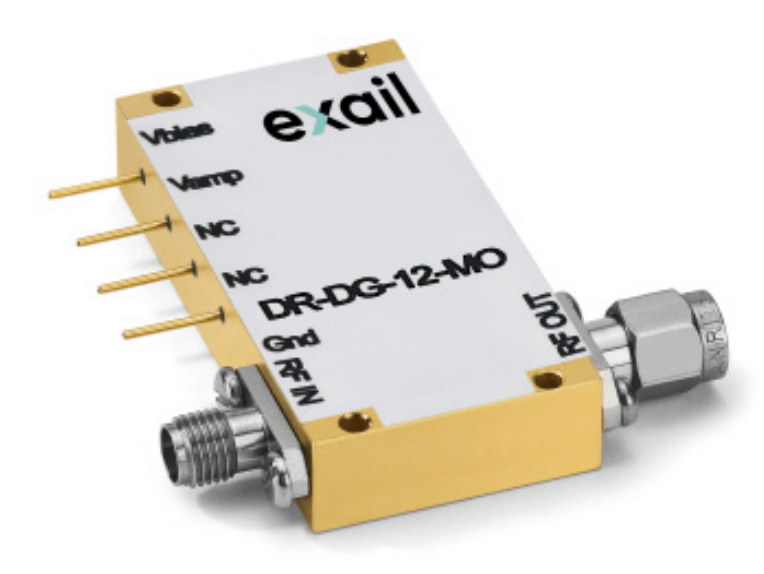

DR-DG-12-MO
Quick Overview
The DR-DG-12-MO is a high performance versatile driver module designed for 2.5 Gbps up to 12.5 Gbps data transmission with NRZ or RZ format. I
| Name | DR-DG-12-MO |
|---|---|
| Description | 12.5 Gb/s NRZ/RZ High Performance Driver Module |
| Frequency | 50 kHz – 18 GHz |
| Added Jitter | 0.9 fs |
| Gain | 30 dB |
| Output Voltage | 2-8 Vpp |
| Rise/Fall Time | 14/14 ps |
| Saturated Output Power | 23 dBm |
