- User selectable 2A or 4A range
- < 40uA noise
- 60 Watts of TEC power
- 0.002°C stability
- AutoTune automatic PID
- USB / RS-232 interfaces
6310-QCL
Quick Overview

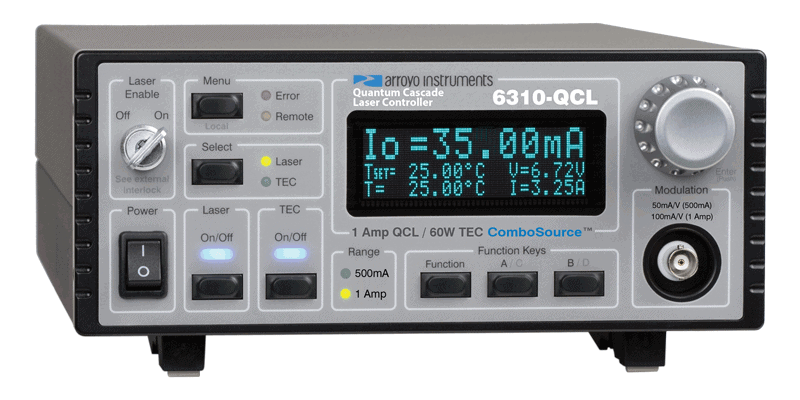

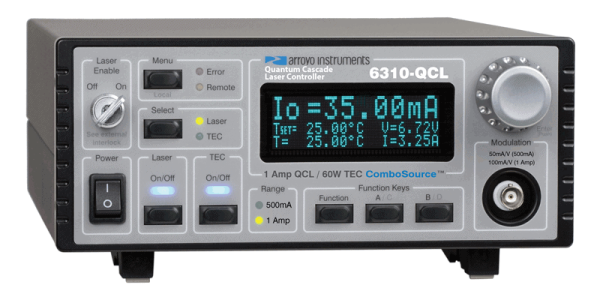

6310-QCL Quantum Cascade Controller, 1 Amp
| Name | 6310-QCL |
|---|---|
| Description | 6310-QCL Quantum Cascade Controller, 1 Amp |
| Size | 3.5 (90) x 8.5 (215) x 12 (305) |
| Current Limit Accuracy | 0.05 A |
| Current Compliance Voltage | 12 V |
| Current Noise/Ripple | < 0.005 A, rms |
| Voltage Temperature Coeff | < 100 ppm/°C |
| Voltage Range | 0 – 18 V |
| PD Measurement Accuracy | 0.05% + 1 μA |
| Modulation Input Range | 0 – 10V, 10kΩ |
| AD590 Temp Accuracy | 0.90 °C (@25 °C) |
| Thermistor Temp Accuracy | 0.03 (25 °C/100µA) |
| Temperature Resolution | 0.01 °C |
| Temperature Range | -99°C to 250°C |
| Stability | < 10 ppm, 1 hour |
| Resolution Power | 0.05 mA |
| Temperature Coeff | 50 ppm/°C |
| LM335 Temp Accuracy | 0.90 °C (@25 °C) |
| Compliance Voltage | 18 V |
| RTD Temp Accuracy | 0.35 °C (@25 °C) |
| PD Resolution | 0.1 μA |
| Thermistor Accuracy | 0.05 + 0.005kΩ (100µA Range)/0.05 + 0.05kΩ (10µA Range) |
| PD Temperature Coeff | < 200 ppm/°C |
| Thermistor Range | 0.02 – 45kΩ (100µA Range)/0.2 – 450kΩ (10µA Range) |
| Voltage Measurement Accuracy | 0.05% + 0.001 V |
| Thermistor Resolution | 0.001kΩ (100µA Range)/0.01kΩ (10µA Range) |
| Current Range | ±5 A |
| AD590 Accuracy | 0.03% + 0.1 µA |
| Temperature Controller Power | ±5A, ±12V, 60W |
| AD590 Range | 173 μA – 473 μA |
| I/O | USB 2.0 Full Speed (USB Type B), RS-232 (DB-9, male) |
| AD590 Resolution | 0.01 μA |
| Setpoint Accuracy | 0.025% + 0.3 mA |
| AD590 Bias | 4.5 V |
| Transients | < 200 μA |
| LM335 Accuracy | 0.3% + 1 mV |
| Modulation Bandwidth | 200 kHz |
| LM335 Range | 1730 – 4730 mV |
| PD Range | 5 – 5,000 μA |
| LM335 Resolution | 0.1 mV |
| PD Setpoint Accuracy | 0.05% + 1 μA |
| LM335 Bias | 1 mA |
| PD Stability | < 200 ppm, 24 hours |
| RTD Accuracy | 0.03 % + 0.1 Ω |
| PD Bias | 0 to -5V, (programmable) |
| RTD Range | 20 – 192 Ω |
| Voltage Setpoint Accuracy | 0.05% + 0.005 V |
| RTD Resolution | 0.01 Ω |
| Voltage Stability | < 50 ppm, 1 hour |
| RTD Bias | 1 mA |
| Laser Connector | DB-9, female (Laser) / DB-15, female (TEC) |
| Current Resolution | 0.01 A |
| Voltage Resolution | 0.001 V |
| Current Accuracy | 0% + 0.03 A |
| TEC Power | 60 W |
| Noise/Ripple | < 2.5 μA rms, low BW |
| Temperature Controller Stability | 0.002 (1 hour, °C) / 0.005 (24 hours, °C) |
| Measurement Accuracy | 0.025% + 0.3 mA |
| Current | 1 A |
| Range | 0 – 1,000 (mA) or 0 – 500 (mA) |
