USB-enabled, 2.4 mJ – 3J pulse energy sensor, rep. rate up to 50 pps, 0.266 to 2.1 µm spectral range, 35 mm diameter max beam size.
Features
Applications
| Name | 1191437 |
|---|---|

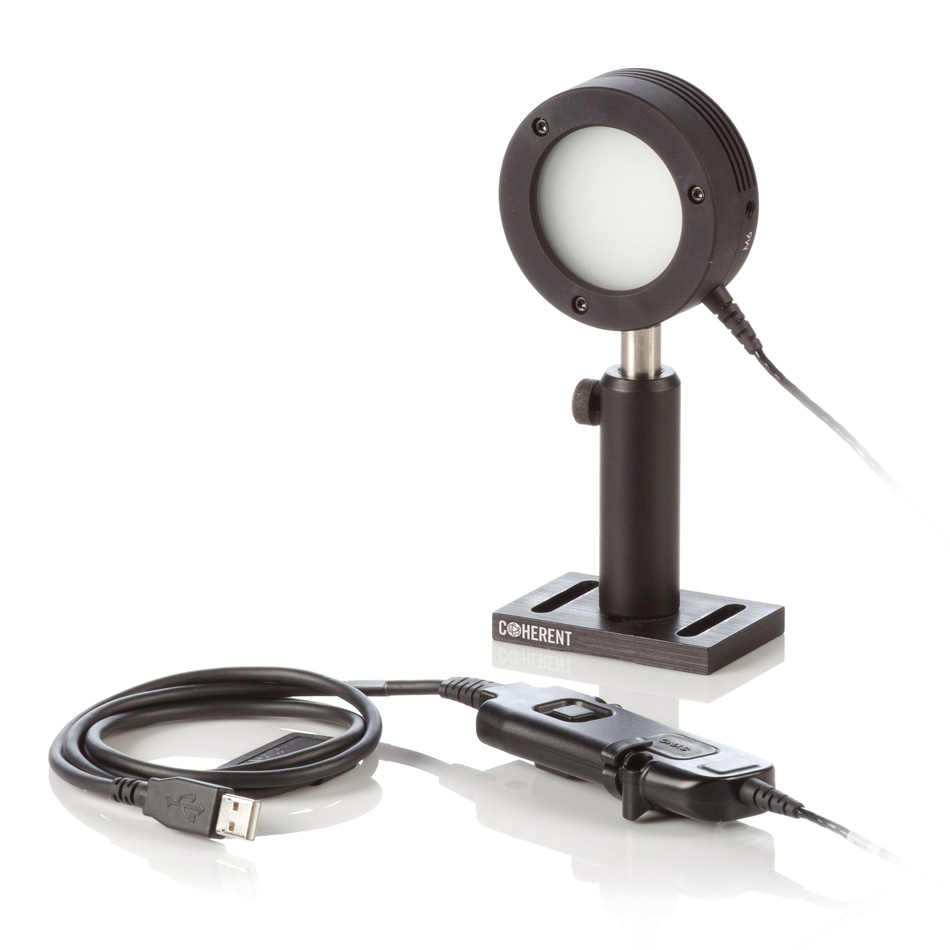

| Description | EnergyMax-USB J-50MB-YAG Energy Sensor |
| Wavelength Range | 266 nm to 2100 nm |
| Energy Linearity | ± 3 |
| Calibration Uncertainty | ± 2 |
| Calibration Wavelength | 1064 nm |
| Diffuser | YAG |
| Detector Coating | MaxBlack |
| Energy Density | Max: 14.0 (at 1064 nm, 10 ns) |
| Noise Equivalent Energy | <240 µJ |
| Max Rep Rate | 50 pps |
| Active Area Diameter | 35 mm |
| Energy Range | 2.4 mJ to 3 J |
| Pulse Width | Max. 340 µs |
| Interface Type | USB |
