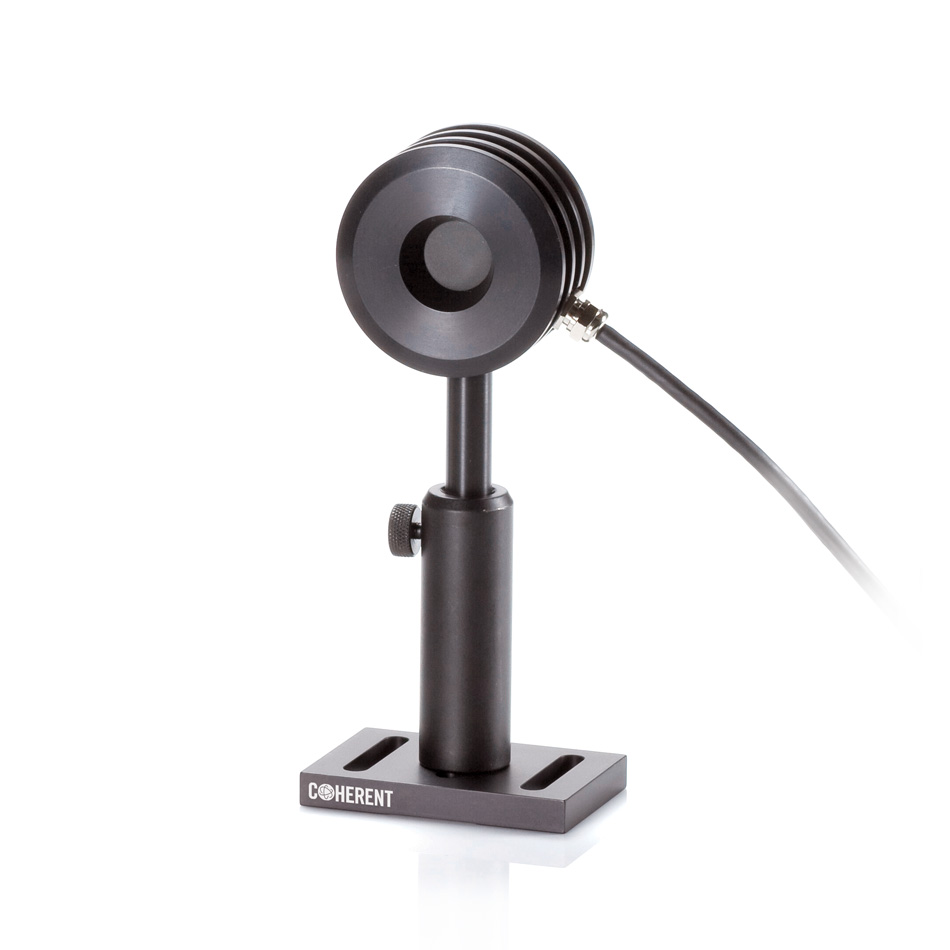

USB-enabled, 10 mW to 10W power sensor, 0.25 to 11 µm spectral range, 19 mm diameter active area.
Features
Applications
| Name | 1174262 |
|---|---|
| Description | PowerMax-USB PM10 |
| Wavelength Range | 190 nm to 11000 nm |
| Spectral Compensation Accy | ± 1.5 |
| Noise Equivalent Pwr | 0.2 mW |
| Max Power Density | 6 kW/cm2 |
| Calibration Uncertainty | ± 2 |
| Calibration Wavelength | 10,600 nm |
| Detector Coating | Broadband |
| Energy Density | Max: 600 (mJ/cm²) (1064 nm, 10 ns) |
| Active Area Diameter | 19 mm |
| Detector Type | Broadband |
| Power | Linearity: ±1 % |
| Cooling | Air-cooled |
| Power Range | 5 mW to 10 W |
| Response Time | 2 s (Speed-up On) / 4 s (Speed-up Off) |
| Interface Type | USB |
