USB-enabled, 300 mW to 150W power sensor, 0.19 to 11 µm spectral range, 50 mm diameter active area.
Features
Applications
| Name | 1168348 |
|---|---|

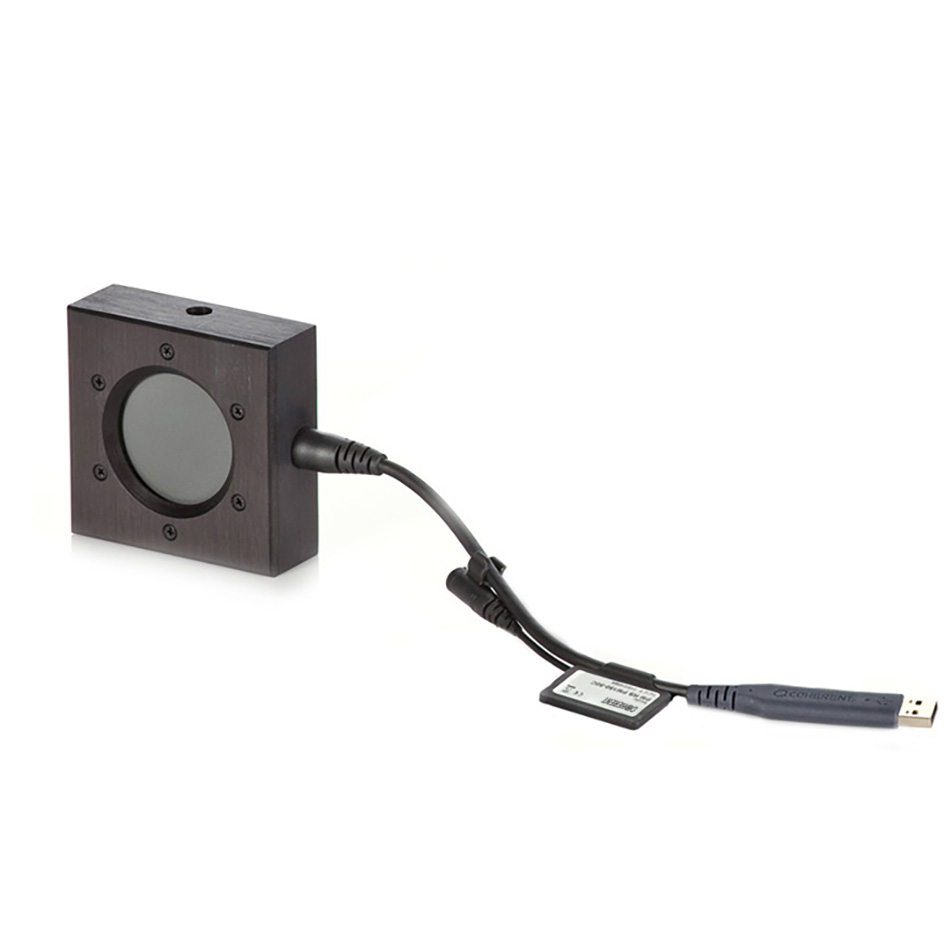

| Description | PowerMax-USB PM150-50C |
| Wavelength Range | 190 nm to 11000 nm |
| Spectral Compensation Accy | ± 1.5 |
| Noise Equivalent Pwr | 1 mW |
| Max Power Density | 6 kW/cm2 |
| Calibration Uncertainty | ± 2 |
| Calibration Wavelength | 10,600 nm |
| Detector Coating | Broadband |
| Energy Density | Max: 600 (mJ/cm²) (1064 nm, 10 ns) |
| Active Area Diameter | 50 mm |
| Detector Type | Broadband |
| Power | Linearity: ±1 % |
| Cooling | Water/Air (intermittent) |
| Power Range | 300 mW to 150 W |
| Response Time | 3 s (Speed-up On) / 12 s (Speed-up Off) |
| Interface Type | USB |
