Quick Overview

125 µJ to 250 mJ pulse energy sensor, rep. rate up to 200 pps, 0.19 to 2.1 µm spectral range, 50 mm diameter active area.

Features

  • Unique MaxUV coating delivers increased damage threshold, long term UV exposure resistance and high repetition rate operation
  • Operate over the 190 nm to 2.1 µm range
  • Enable pulse energy measurements from 50 µJ to 1 J
  • Measure single shot to 200 Hz repetition rate

Applications

  • Medical
  • Scientific
  • Industrial
  • Excimer Laser Applications
Name1146237

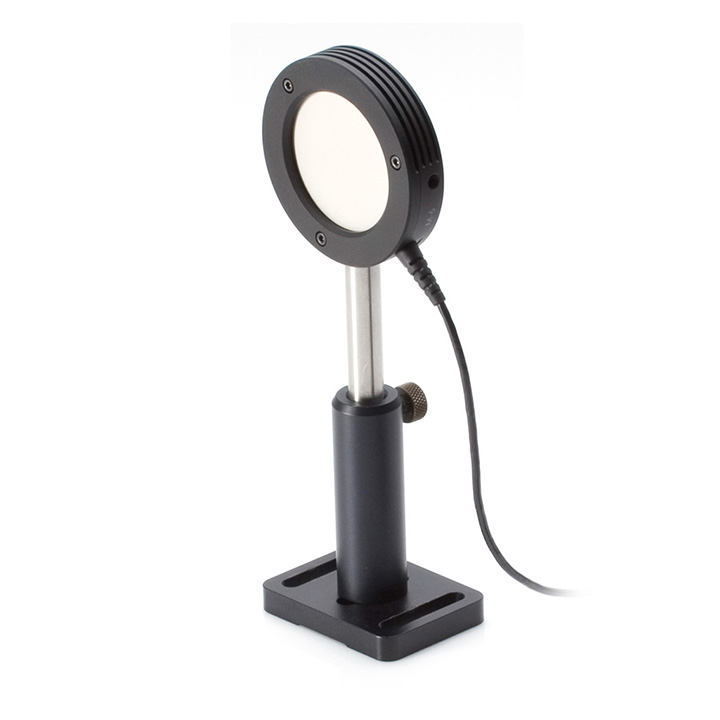

DescriptionEnergyMax-USB J-50MUV-193 Energy Sensor
Wavelength Range190 nm to 2100 nm
Energy Linearity± 3
Calibration Uncertainty ± 3
Calibration Wavelength193nm
DiffuserNo
Detector CoatingMaxUV
Energy DensityMax: 200 (at 193 nm, 10 ns)
Noise Equivalent Energy<16 µJ
Max Rep Rate200 pps
Active Area Diameter50mm
Energy Range125 µJ to 250 mJ
Pulse WidthMax. 86 µs
Interface TypeUSB
