Features
- Maximum powers from 200 W to 300 W
- Minimum power down to 1 W
- Broadband and Excimer coatings
- Fan-cooled
- 0.25 µm to 11 µm spectral range
- 19 mm and 50 mm diameter active areas
- RoHS compliant
1098472
Quick Overview

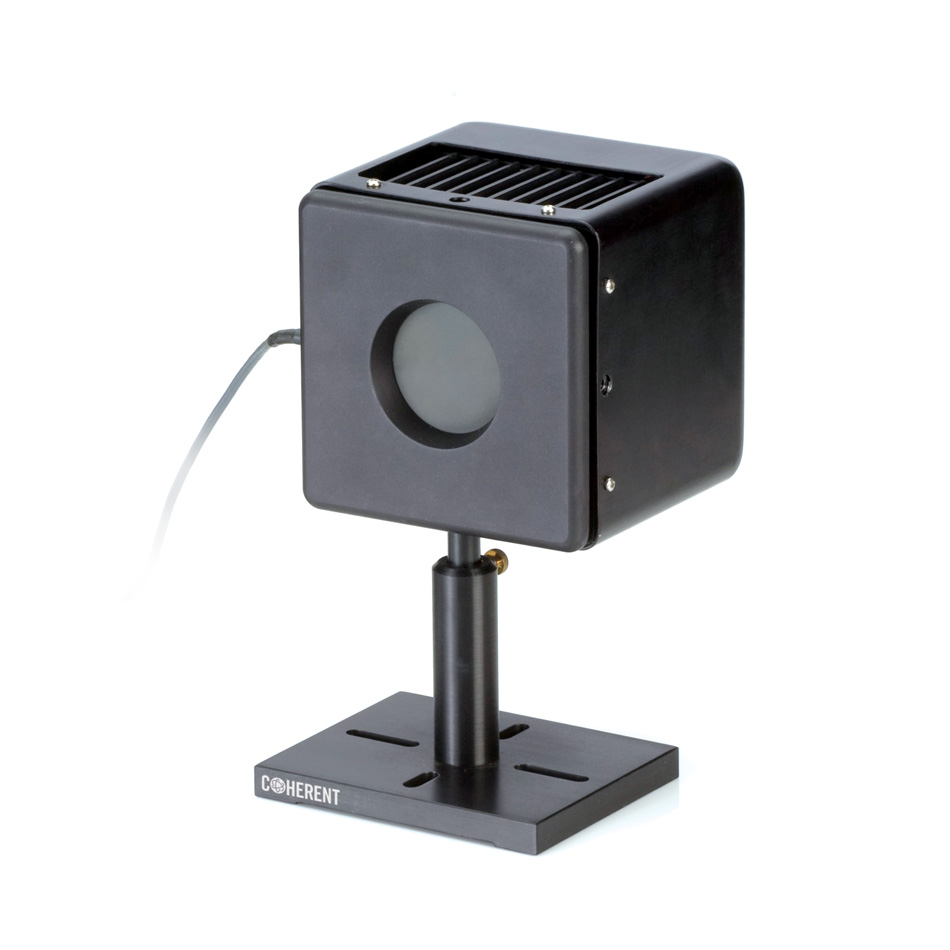

1W to 200W power sensor, 0.25 to 11 µm spectral range, 50 mm diameter active area.
| Name | 1098472 |
|---|---|
| Description | PM200F-50 |
| Wavelength Range | 250 nm to 11000 nm |
| Max Power Density | 6 kW/cm2 |
| Calibration Uncertainty | ± 1 |
| Calibration Wavelength | 514 nm |
| Detector Coating | Broadband |
| Energy Density | Max: 600 (mJ/cm²) (1064 nm, 10 ns) |
| Active Area Diameter | 50 mm |
| Detector Type | Broadband |
| Cooling | Fan-cooled |
| Power Range | 1 W to 200 W |
| Response Time | 5 s |
| Interface Type | DB-25 |
| Resolution | 100 W |
