Features
- Compact designs
- Use water-cooled or air-cooled
- 19 mm and 50 mm apertures
Applications
- Medical
- Scientific
- Industrial
- General Laser Power Measurement to 5 kW
1098412
Quick Overview

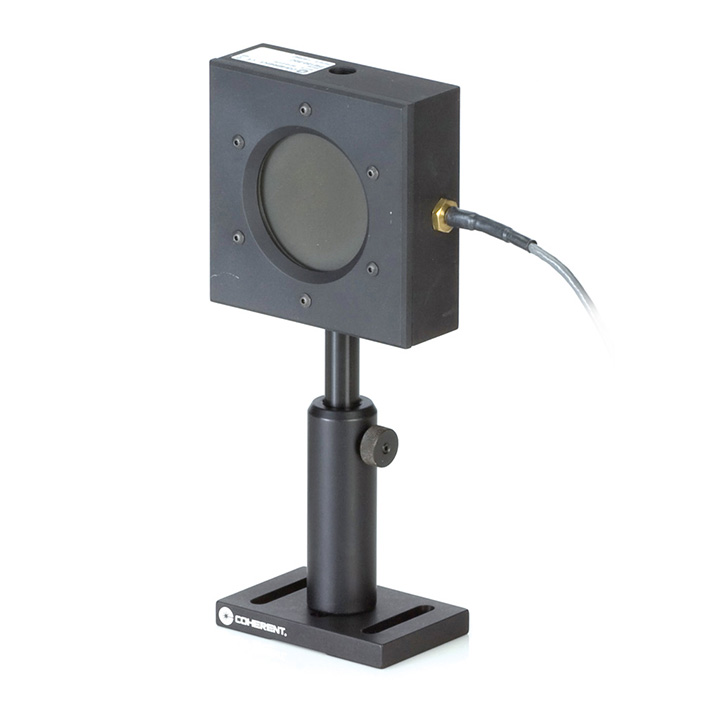

300 mW to 150W power sensor, 0.25 to 11 µm spectral range, 50 mm diameter active area.
| Name | 1098412 |
|---|---|
| Description | PM150-50C |
| Wavelength Range | 250 nm to 11000 nm |
| Max Power Density | 6 kW/cm2 |
| Calibration Uncertainty | ± 1 |
| Calibration Wavelength | 514 nm |
| Detector Coating | Broadband |
| Energy Density | Max: 600 (mJ/cm²) (1064 nm, 10 ns) |
| Active Area Diameter | 50 mm |
| Detector Type | Broadband |
| Cooling | Water-cooled |
| Power Range | 300 mW to 150 W |
| Response Time | 5 s |
| Interface Type | DB-25 |
| Resolution | 30 mW |
