Features
- Thermally stabilized designs
- Power measurement from
- 100 µW to 1 W
- 10 µW resolution
- 10 mm and 19 mm apertures
- FC and SMA fiber adapters (optional for PS10, see accessories secton of datasheet)
- RoHS compliant
1098350
Quick Overview

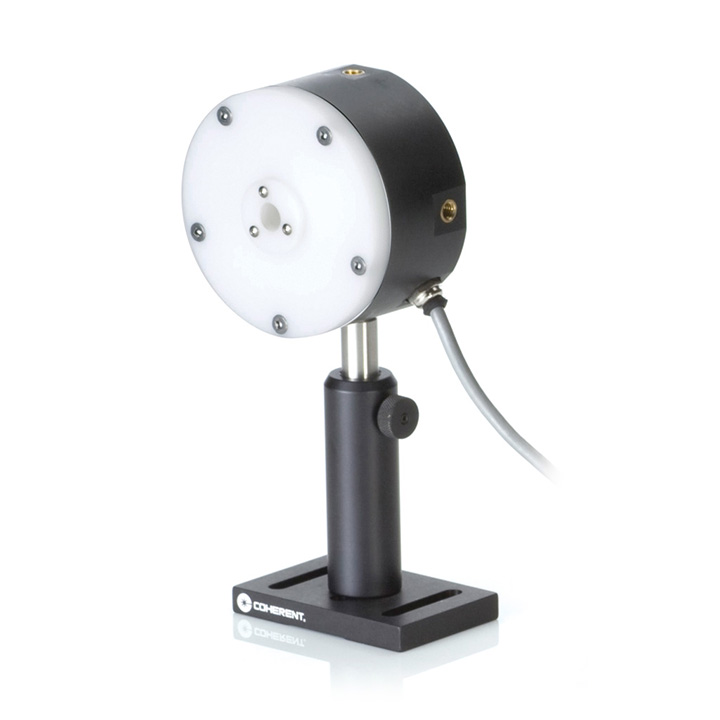

100 µW to 1W low power sensor, 0.19 to 11 µm spectral range, 10 mm diameter active area.
| Name | 1098350 |
|---|---|
| Description | PS10 |
| Wavelength Range | 190 nm to 11000 nm |
| Max Power Density | 0.5 kW/cm2 |
| Calibration Uncertainty | ± 1 |
| Calibration Wavelength | 514 nm |
| Detector Coating | Black |
| Energy Density | Max: 50 (mJ/cm²) (1064 nm, 10 ns) |
| Active Area Diameter | 10 mm |
| Detector Type | Black |
| Thermal Performance | Thermal Drift: ±40 µW |
| Cooling | Air-cooled |
| Power Range | 100 µW to 1 W |
| Response Time | 2 s |
| Interface Type | DB-25 |
| Resolution | 10 µW |
