Quick Overview

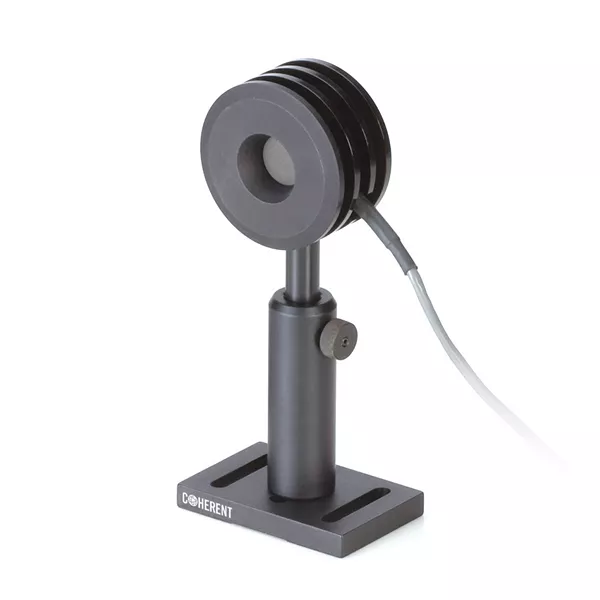

10 mW to 10W power sensor, 0.25 to 11 µm spectral range, 19 mm diameter active area.

Features

  • Maximum powers from 2 W to 150 W
  • Minimum power down to 10 mW
  • Broadband and Excimer coatings
  • Convective air-cooled
  • 0.15 µm to 11 µm spectral range
  • 19 mm and 50 mm diameter active areas DB25 (meter required)
  • RoHS Compliant

Applications

  • Medical
  • Scientific
  • Industrial
  • General Laser Power Measurement from mW to 150 W
Name1097901
DescriptionPM10
Wavelength Range250 nm to 11000 nm
Max Power Density6 kW/cm2
Calibration Uncertainty ± 1
Calibration Wavelength514 nm
Detector CoatingBroadband
Energy DensityMax: 600 (mJ/cm²) (1064 nm, 10 ns)
Active Area Diameter19 mm
Detector TypeBroadband
CoolingAir-cooled
Power Range10 mW to 10 W
Response Time2 s
Interface TypeDB-25
Resolution1 mW
