Generators and Analyzers for D-PHY, C-PHY, and M-PHY

The SV3C Generators are dual-capable C-PHY and D-PHY to transmit MIPI- compliant data, inject physical and protocol impairments and interoperate with your devices. The CPRX 4-Lane C-PHY Analyzer is the winner of the 2015 DesignCon Best in Design & Test and is the only system capable of eye capture, complete BER detection and protocol analysis.

Physical Layer Performance

  • C-PHY 1.0/1.1: 4 Lanes (12 wires)
  • D-PHY 1.2/2.0: 4 Lanes + CLK (10 wires)
  • M-PHY G1-G3/G4: 8 Lanes (16 wires)
  • Per-wire skew control with 1-ps resolution
  • Per-lane HS and LP amplitude controls
  • Inject impairments such as DCD, jitter and skew
  • Capture eye diagrams, count errors and analyze packets for timing and payload analysis


  • DSI/CSI compilers for both D-PHY and C-PHY
  • Packet payloads of real images, PRBS patterns, counter patterns and user-defined creations
  • Burst and High-Speed Only modes of operation
  • Full user-control over LP and HS global timing parameters and payload characteristics


Visit Introspect's YouTube Channel for Virtual Demos

Downloadable Items:

AdobeMIPI Selection Guide

AdobeMIPI Catalog

ModelDescriptionMax Data RateTx ChannelsRx ChannelsConfiguration

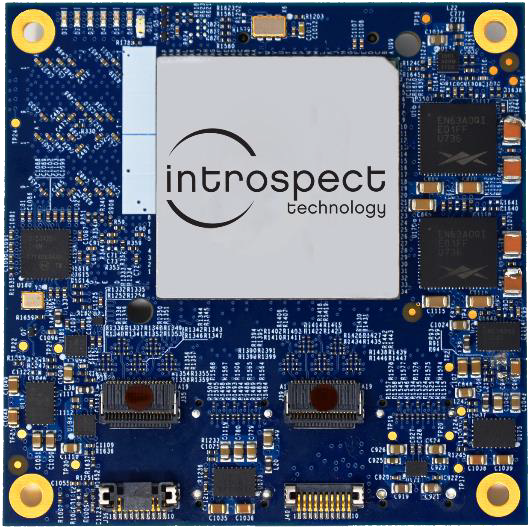

SV4D-DPTXDirect Attach MIPI Test Module2.5 Gbps4+clock4+clockInstrument & Software only
SV4D-CPRXDPRXUltra-compact direct-attach MIPI test module with 2 CPRX/DPRX ports2.5 Gbps2MIPI C-PHY/D-PHY Gen Bundle
